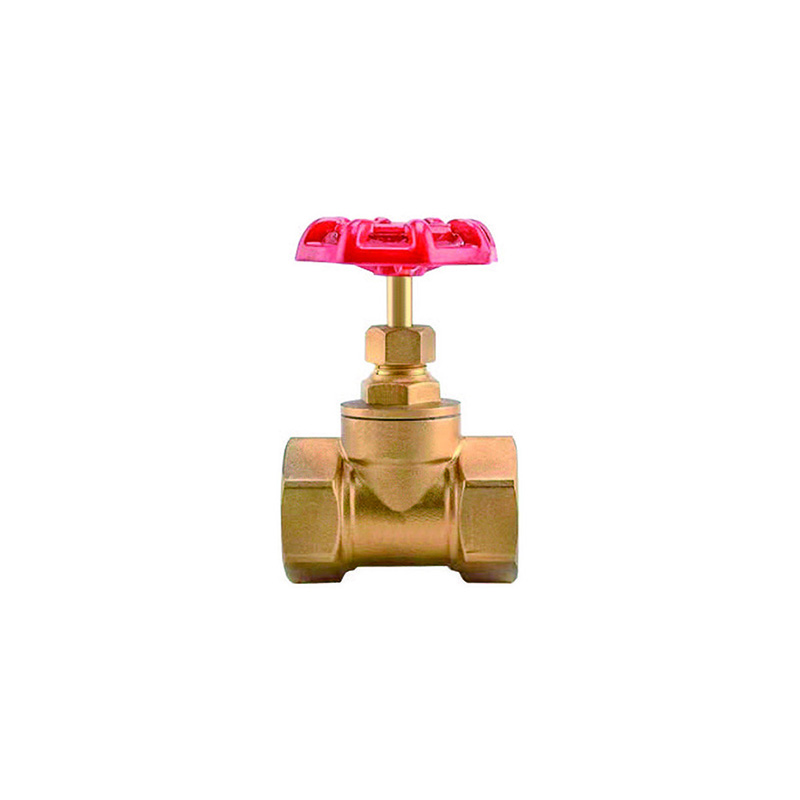

1. Fields of applications: Water & Non-Causticity Liquid &
Saturated Steam
2. Maximum Working pressure: Pn25
3. Female thread connections comply with lSO 228 (Bs2779)
1. Fields of applications: Water & Non-Causticity Liquid &
Saturated Steam
2. Maximum Working pressure: Pn25
3. Female thread connections comply with lSO 228 (Bs2779)

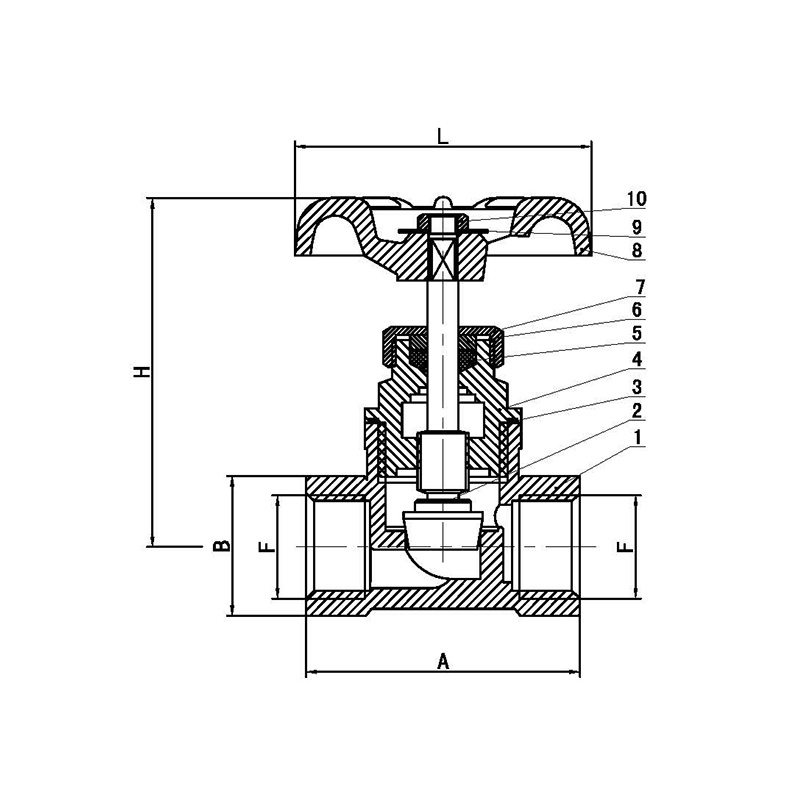

| Dimensions-Lever Handle | ||||
| F | B | A | H | L |
| 1/2" | 27.3 | 44 | 61 | 54 |
| 3/4" | 34.2 | 52 | 66 | 54 |
| 1" | 42.2 | 60 | 75 | 58 |
| 1-1/4" | 52.5 | 70 | 84 | 72 |
| 1/2" | 60.5 | 75 | 96 | 87 |
| 2" | 74 | 92 | 110 | 95 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | STEM | BRASS |
| 3 | SEAT | PTFE |
| 4 | BONNET | BRASS |
| 5 | PACKING | PTFE |
| 6 | GASKET | BRASS |
| 7 | GLANG NUT | BRASS |
| 8 | HANDWHEEL | IRON |
| 9 | WASHER | ALUMINUM |
| 10 | LOCK NUT | STAINLESS STEEL |
