1. Maximal work temperature: 110°C
2. Maximal working pressure: 10bar(145PSI)
3. Connection thread conforms to lSO228 or ISO7-1
1. Maximal work temperature: 110°C
2. Maximal working pressure: 10bar(145PSI)
3. Connection thread conforms to lSO228 or ISO7-1

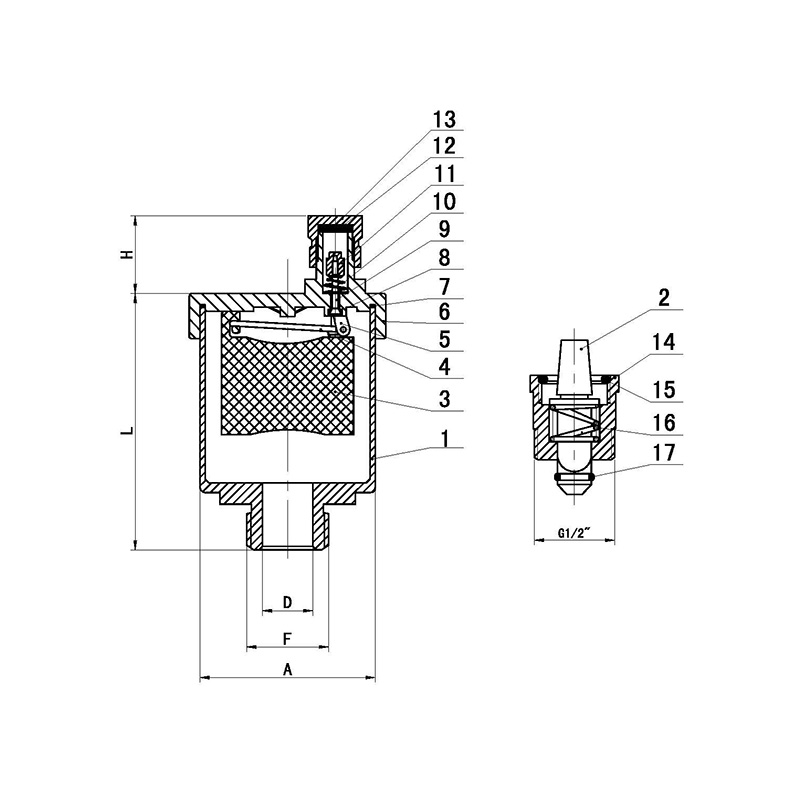

| Dimensions-Lever Handle | ||||
| F | D | A | H | L |
| 1/2" | 14.5 | 35.5 | 10 | 56.5 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | ASTIC CARTRIDGE | ABS |
| 3 | PLASTIC BODY | ABS |
| 4 | SPRING LINK | STAINLESS STEEL |
| 5 | SPRING | STAINLESS STEEL |
| 6 | BONNET | BRASS |
| 7 | O-RING | NBR |
| 8 | O-RING | NBR |
| 9 | CRATRAGE | BRASS |
| 10 | SPRING | STAINLESS STEEL |
| 11 | CRATRAGE CAP | BRASS |
| 12 | GASKET | NBR |
| 13 | CAP | BRASS |
| 14 | UNION | BRASS |
| 15 | O-RING | NBR |
| 16 | SPRING | STAINLESS STEEL |
| 17 | O-RING | NBR |
