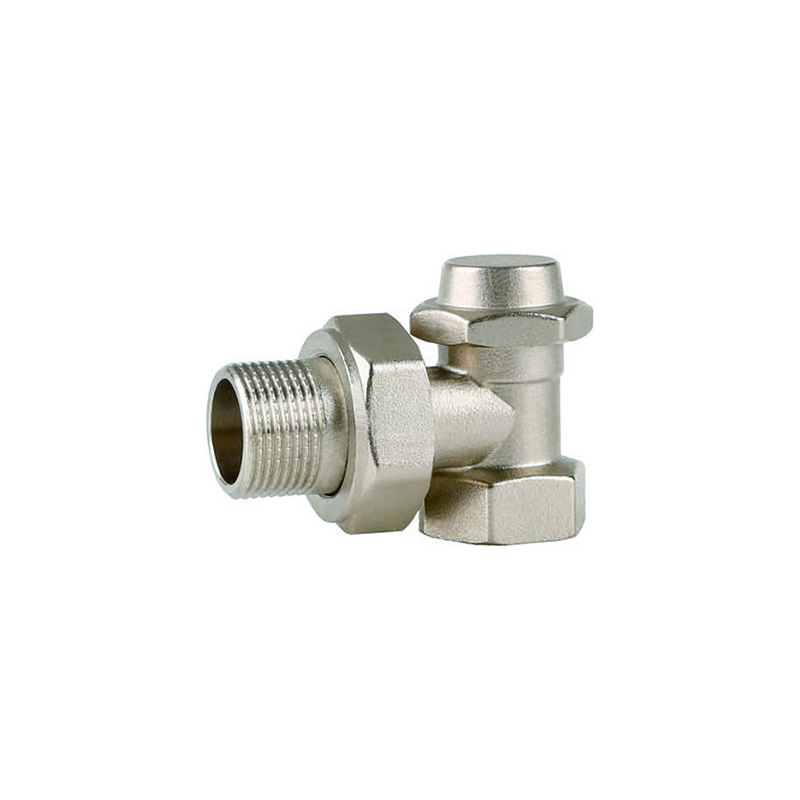

1. Before assembling, all parts should be clean, without burrs and sharp edges.
2. Valve's on and off should be flexible, no jam.
1. Before assembling, all parts should be clean, without burrs and sharp edges.
2. Valve's on and off should be flexible, no jam.

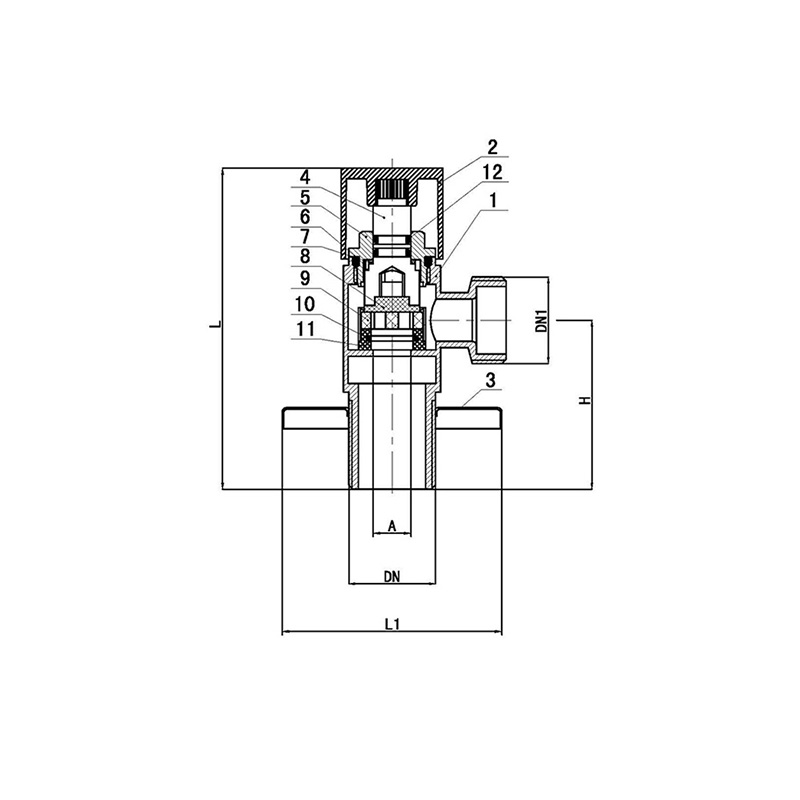

| Dimensions-Lever Handle | |||||
| Dn1 | DN | A | H | L1 | L |
| 3/8" | 1/2" | 10 | 40 | 52 | 78 |
| 1/2" | 1/2" | 10 | 40 | 52 | 78 |
| 3/4" | 1/2" | 10 | 40 | 52 | 78 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | SQUARE HANDLE | ZINC ALLOY |
| 3 | ACCESSORY COVER | ZINC |
| 4 | SCREW | BRASS |
| 5 | SEAT | BRASS |
| 6 | O-RING | NBR |
| 7 | PLASTIC GASKET | ABS |
| 8 | UP INSERT | CERAMICS |
| 9 | LOW INSERT | CERAMICS |
| 10 | CIRCLIP | STAINLESS STEEL |
| 11 | WASHER | NBR |
