1. Full bore
2. Fields of applications: Gas & Water
3. Working pressure: MOP 5-20
4. Female thread connections comply with ISO 228(BS2779)
1. Full bore
2. Fields of applications: Gas & Water
3. Working pressure: MOP 5-20
4. Female thread connections comply with ISO 228(BS2779)

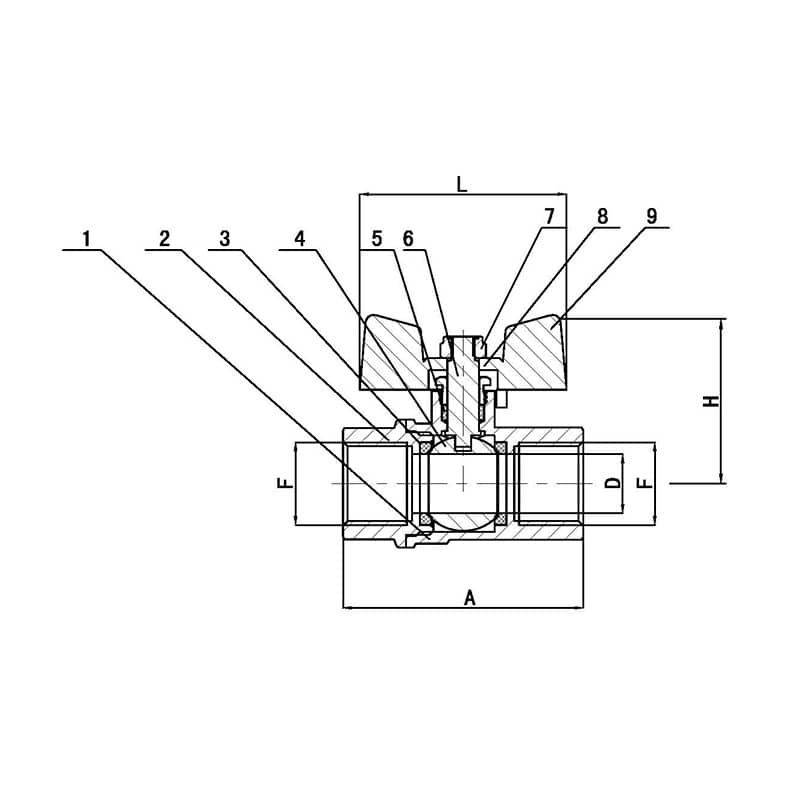

| Dimensions-Lever Handle | ||||
| F | D | A | H | L |
| 1/2" | 15 | 61 | 42.8 | 52.5 |
| 3/4" | 20 | 69 | 46.3 | 63 |
| 1" | 25 | 83 | 59 | 72.5 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | BONNET | BRASS |
| 3 | SEAT | PTFE |
| 4 | BALL | BRASS |
| 5 | PACKING | PTFE |
| 6 | STEM | BRASS |
| 7 | LOCK NUT | IRON |
| 8 | GLAND NUT | BRASS |
| 9 | HANDLE | ALUMINUM |
