1. Fields of applications: Water
2. Maximum working pressure: PN25
3. Female thread connections comply with ISO 228(BS2779)
1. Fields of applications: Water
2. Maximum working pressure: PN25
3. Female thread connections comply with ISO 228(BS2779)

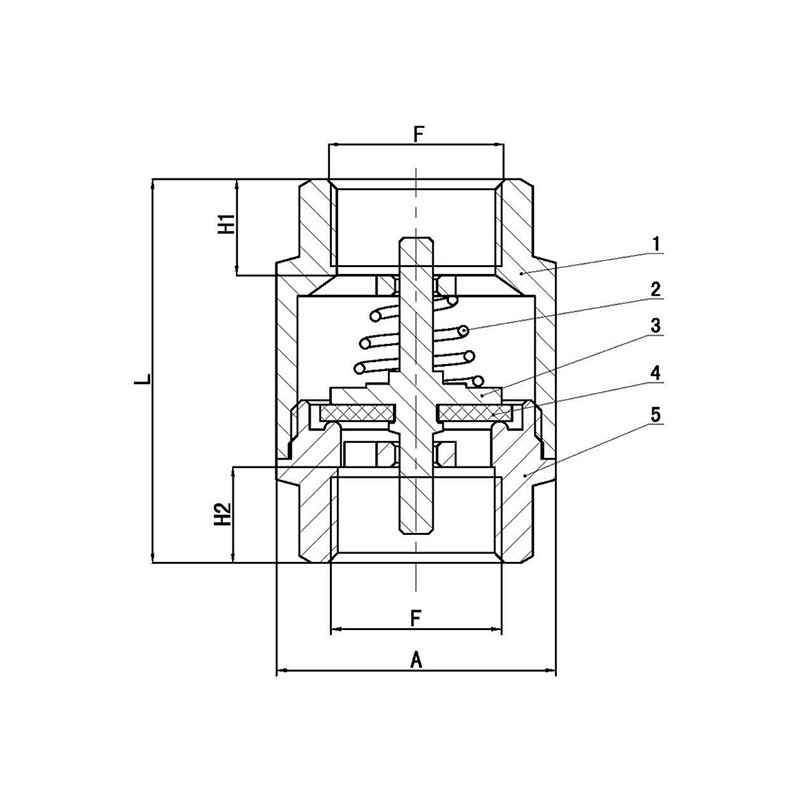

| Dimensions-Lever Handle | ||||
| F | A | H1 | H2 | L |
| 1/2" | 32.5 | 11 | 11 | 45.5 |
| 3/4" | 39 | 14 | 12 | 52 |
| 1" | 43 | 14 | 12.5 | 55.5 |
| 1-1/4" | 52.5 | 16 | 15 | 61.5 |
| 1-1/2" | 61.5 | 15 | 15.5 | 68.5 |
| 2" | 77.5 | 17 | 17 | 76 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | SPRING | STAINLESS STEEL |
| 3 | CARTRIDGE | BRASS |
| 4 | SEAT RING | NBR |
| 5 | BONNET | BRASS |
