1. Fields of applications: Water
2. Maximum working pressure: PN16
3. Female thread connections comply with ISO 228(BS2779)
1. Fields of applications: Water
2. Maximum working pressure: PN16
3. Female thread connections comply with ISO 228(BS2779)

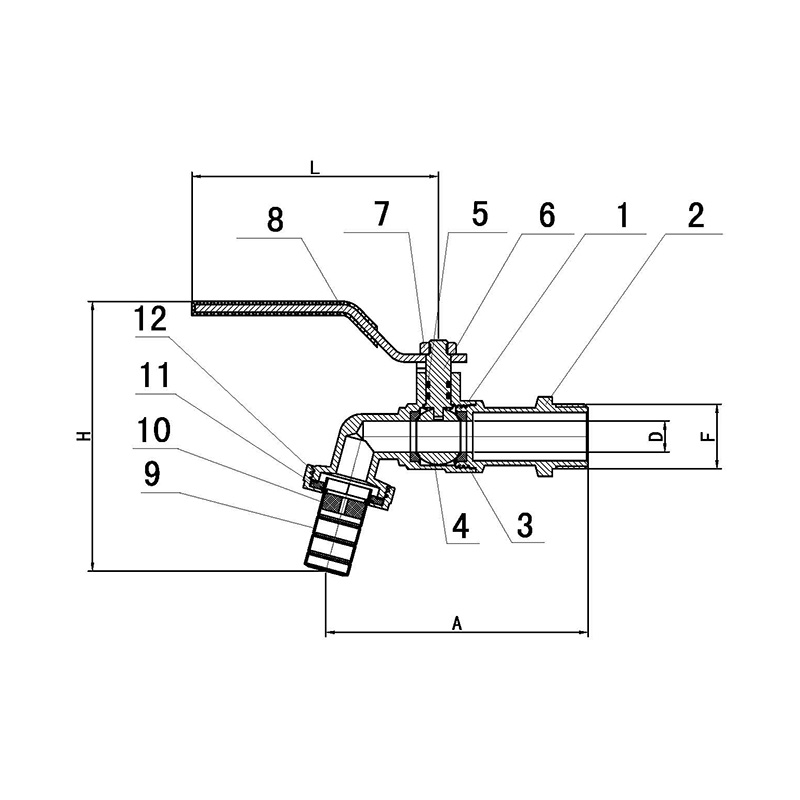

| Dimensions-Lever Handle | ||||
| F | D | A | H | L |
| 1/2" | 10 | 82 | 84 | 80 |
| 3/4" | 13 | 94 | 91 | 90 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | BONNET | BRASS |
| 3 | SEAT | PTFE |
| 4 | BALL | BRASS |
| 5 | O-RING | NBR |
| 6 | STEM | BRASS |
| 7 | LOCK NUT | IRON |
| 8 | HANDLE | IRON |
| 9 | NOZZEL | STAINLESS STEEL |
| 10 | WATER DIVIDER | ABS |
| 11 | WASHER | NBR |
| 12 | CAP | BRASS |
