1. Standard bore
2. Fields of applications: Water
3. Maximum working pressure: PN25
4. Female thread connections comply with ISO 228(BS2779)
1. Standard bore
2. Fields of applications: Water
3. Maximum working pressure: PN25
4. Female thread connections comply with ISO 228(BS2779)

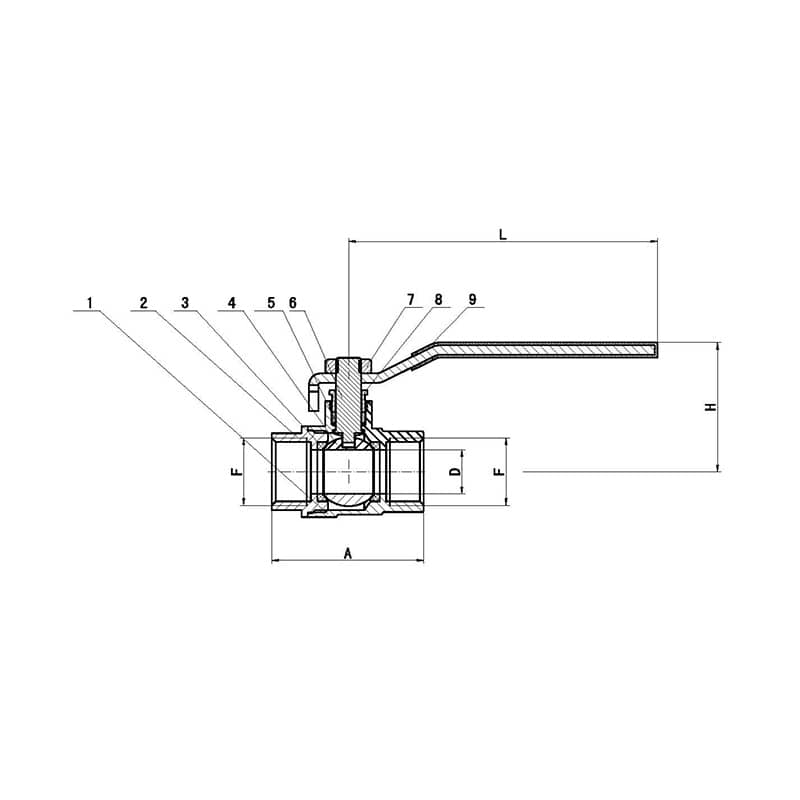

| Dimensions-Lever Handle | ||||
| F | D | A | H | L |
| 1/2" | 14 | 48.5 | 40 | 98 |
| 3/4" | 19 | 56 | 43 | 98 |
| 1" | 23 | 67 | 51 | 120 |
| 1-1/4" | 30 | 76 | 65.5 | 130 |
| 1-1/2" | 37 | 88.5 | 77 | 143 |
| 2" | 47 | 106 | 87 | 143 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | BONNET | BRASS |
| 3 | SEAT | PTFE |
| 4 | BALL | BRASS |
| 5 | PACKING | PTFE |
| 6 | STEM | BRASS |
| 7 | LOCK NUT | IRON |
| 8 | GLAND NUT | BRASS |
| 9 | HANDLE | IRON |
