1. Standard bore
2. Fields of applications: Water
3. Maximum working pressure: PN25
4. Female thread connections comply with ISO 228(BS2779)
1. Standard bore
2. Fields of applications: Water
3. Maximum working pressure: PN25
4. Female thread connections comply with ISO 228(BS2779)

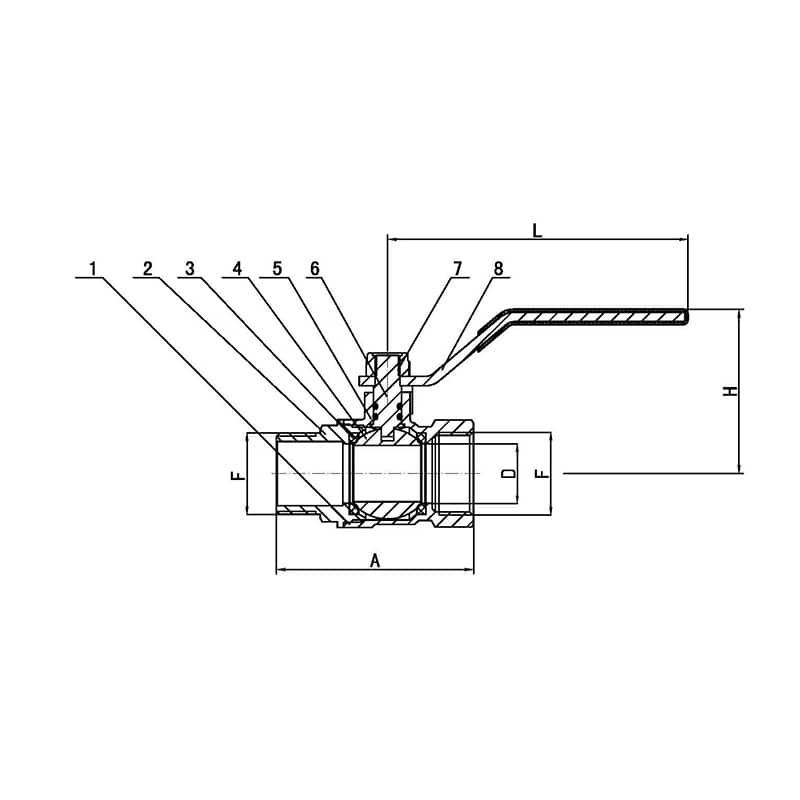

| Dimensions-Lever Handle | ||||
| F | D | A | H | L |
| 1/2" | 15 | 57 | 50 | 96 |
| 3/4" | 19 | 63 | 52.8 | 96 |
| 1" | 24 | 72.5 | 59.5 | 126 |
| 1-1/4" | 30 | 83 | 72.5 | 143 |
| 1-1/2" | 37 | 94 | 77.5 | 143 |
| 2" | 47 | 107.5 | 88.5 | 171 |
| Material-Lever Handle | ||
| NO. | Part Name | Material |
| 1 | BODY | BRASS |
| 2 | BONNET | BRASS |
| 3 | SEAT | PTFE |
| 4 | BALL | BRASS |
| 5 | O-RING | NBR |
| 6 | STEM | BRASS |
| 7 | LOCK NUT | IRON |
| 8 | HANDLE | IRON |
